Ag SPray Hose & Tubing
By Hydrauli-flex

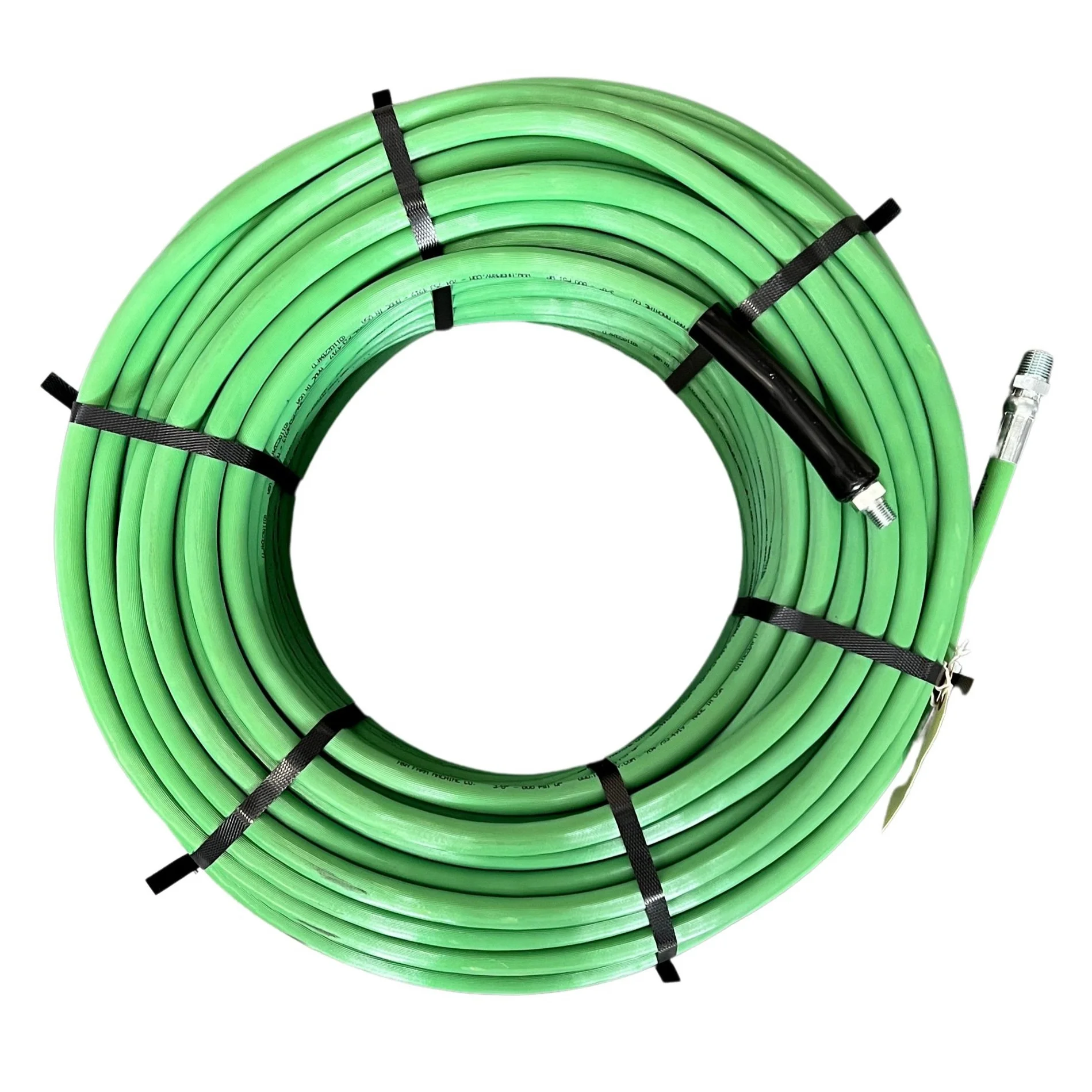

AG SPRAY HOSE AND TUBING BY HYDRAULI-FLEX
Flexible PVC chemical agricultural spray hose produced from premium grade PVC compounds for spraying of diluted solutions of water and oil based pesticides and herbicides, as well as most liquid fertilizers.
POTENTIAL USES:
Pest control bulk reels for spraying diluted solutions of water and oil-based pesticides
Ground care of nurseries, vineyards, & orchards
Light chemical solutions & insecticides
Insect and pest control of commercial property and private residences
Wettable powder insecticide
FEATURES:
Ribbed, abrasion-resistant cover for reduced drag over rocks and other forms of ground cover
Lightweight, flexible, kink-resistant & non-marking
Designed for easy coiling
Superior adhesion between layers for extended service life
CONSTRUCTION:
Tube: PVC - 600 psi
Tube: PVC - 800 psi
Reinforcement: Synthetic High Tensile Textile Cord
Cover: PVC (Ribbed) 600 psi
Cover: PVC (Ribbed) 800 psi
SPECIFICATIONS:
Temperature Range: 25°F (-5°C) to 140°F (+60°C)
Standard Sizes: 3/8", 1/2" I.D.
Rated Working Pressure: 600 psi (70°F)(min 3:1 safety factor)
Packaging: 300 ft and 400 ft coils
Private brand labeling and custom colors available - minimum order quantities required
AG Spray Hose and Tubing |
Part Number | I.D. | O.D. | Max W.P. | Wt./ft. | Lengths |
GR-AG-O6-300' | 3/8" | 0.69 | 800 psi | 1.5 | 300 ft. |
GR-AG-O8-300' | 1/2" | 0.81 | 800 psi | 2 | 300 ft. |
